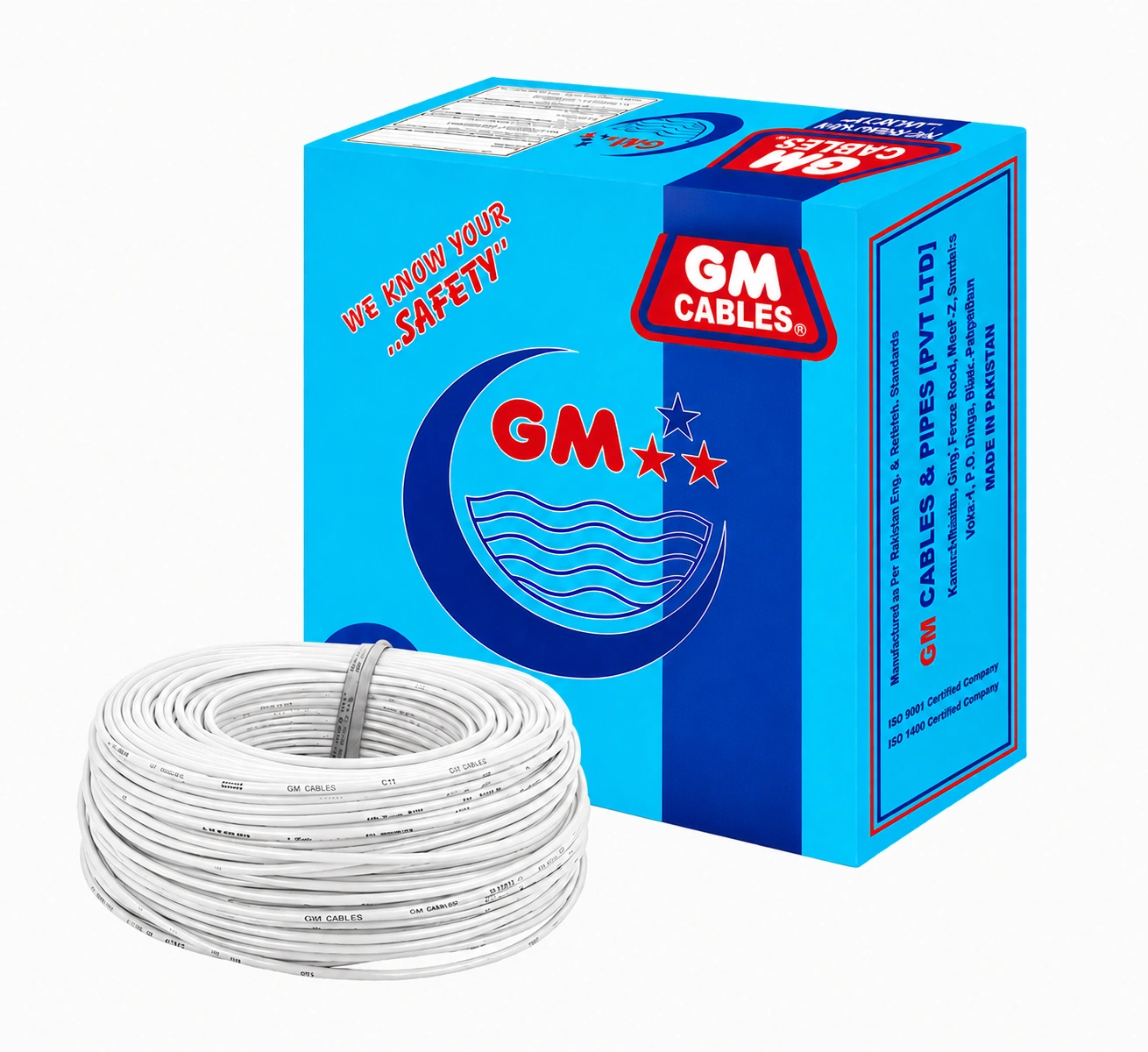

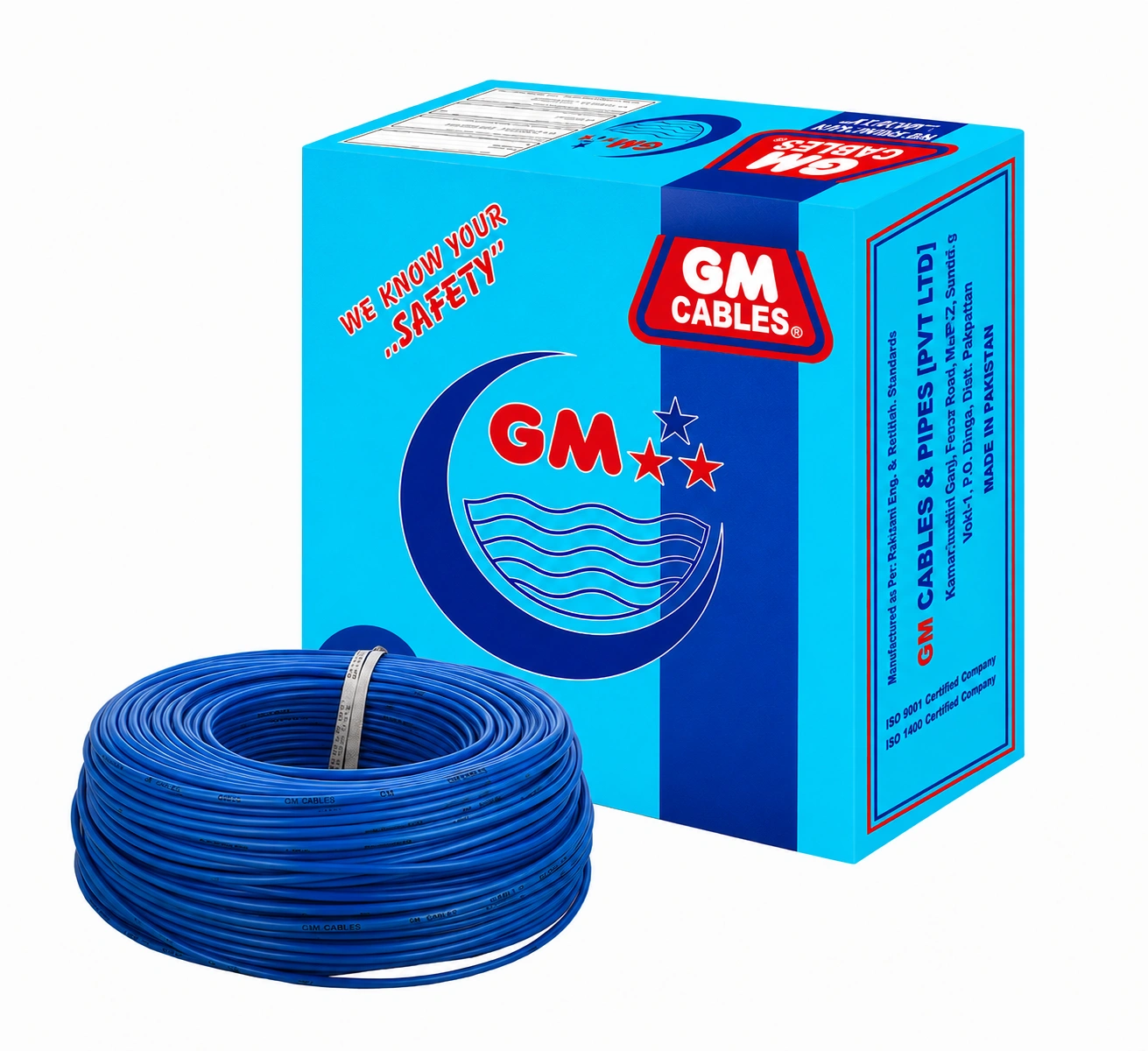

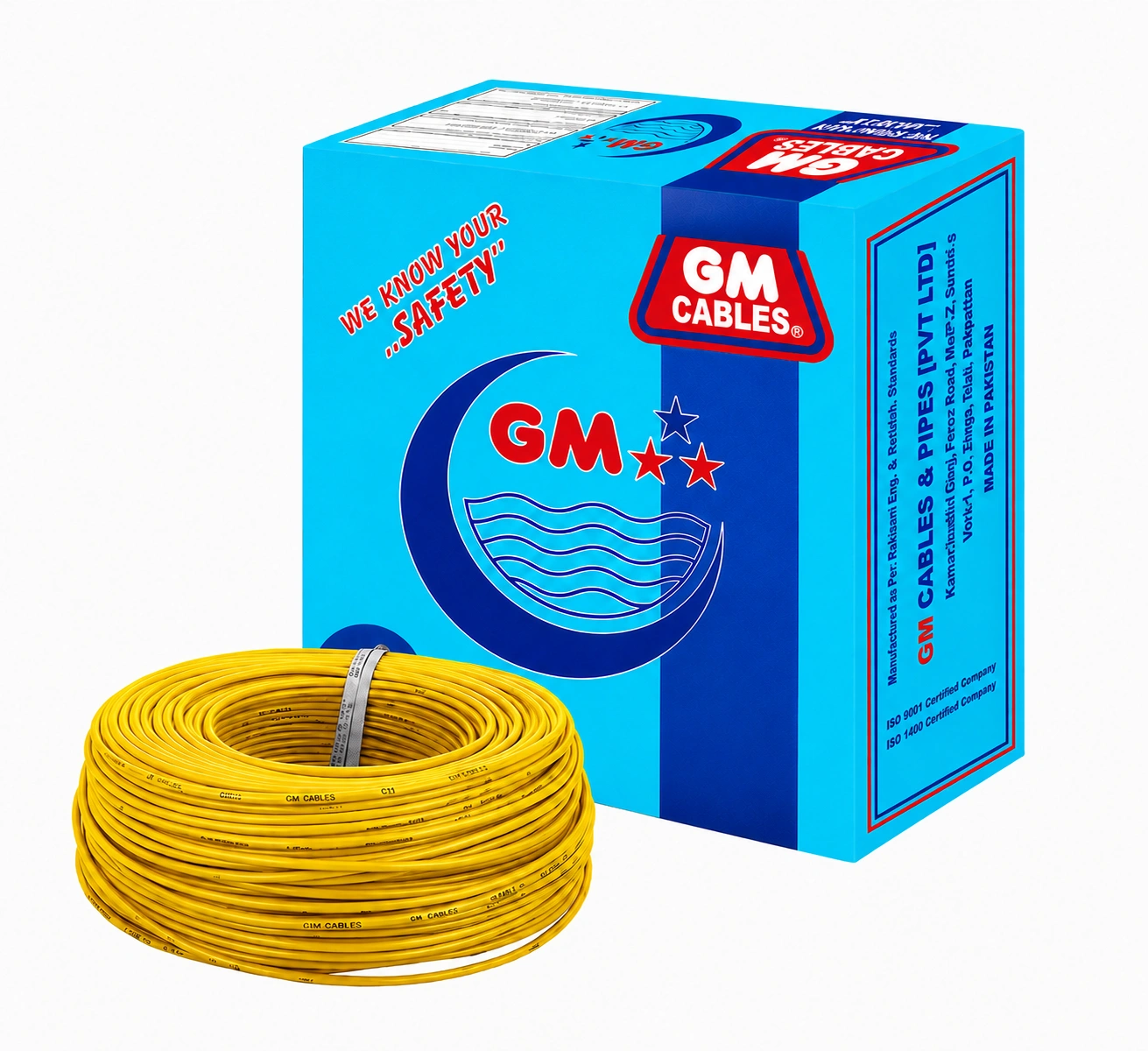

GM 4 mm² General Cable
Note:
- Color: Red, Black, Blue, Yellow, Green , White
- Size: 90 Meter
- Delivery Days: 1-2 Days
Delivery Charges based on Location
Note: GM General Wiring Cables BSS-2004 & 6004 (1-Core Cu/ PVC 450/750V) (2-Core Cu/ PVC 300/500V Flat) (3-Core Cu/ PVC 300/500V Round) (4-Core Cu/ PVC 300/500V Round)
Color *
Core *
Category General Cables
GM 4 mm² General Cable is a copper conductor for installed fixed-power circuits and internal electrical distribution. It can be installed in conduit, in trunking, and in appropriate enclosures based on the project wiring scheme.
The size of the circuit should consider conductor grouping, method of installation, ambient temperature, and circuit path length. These elements may influence the amount of current or voltage drop allowed.
Key Specifications & Features:
Conductor Size: 4mm²
Material: Copper conductor
Standard: BS 6004 range
Single-Core Rating: 450/750V
Multi-Core Rating: 300/500V
Insulation: PVC
Typical Coil Length: 90 metres
Application: Fixed power and distribution circuits
