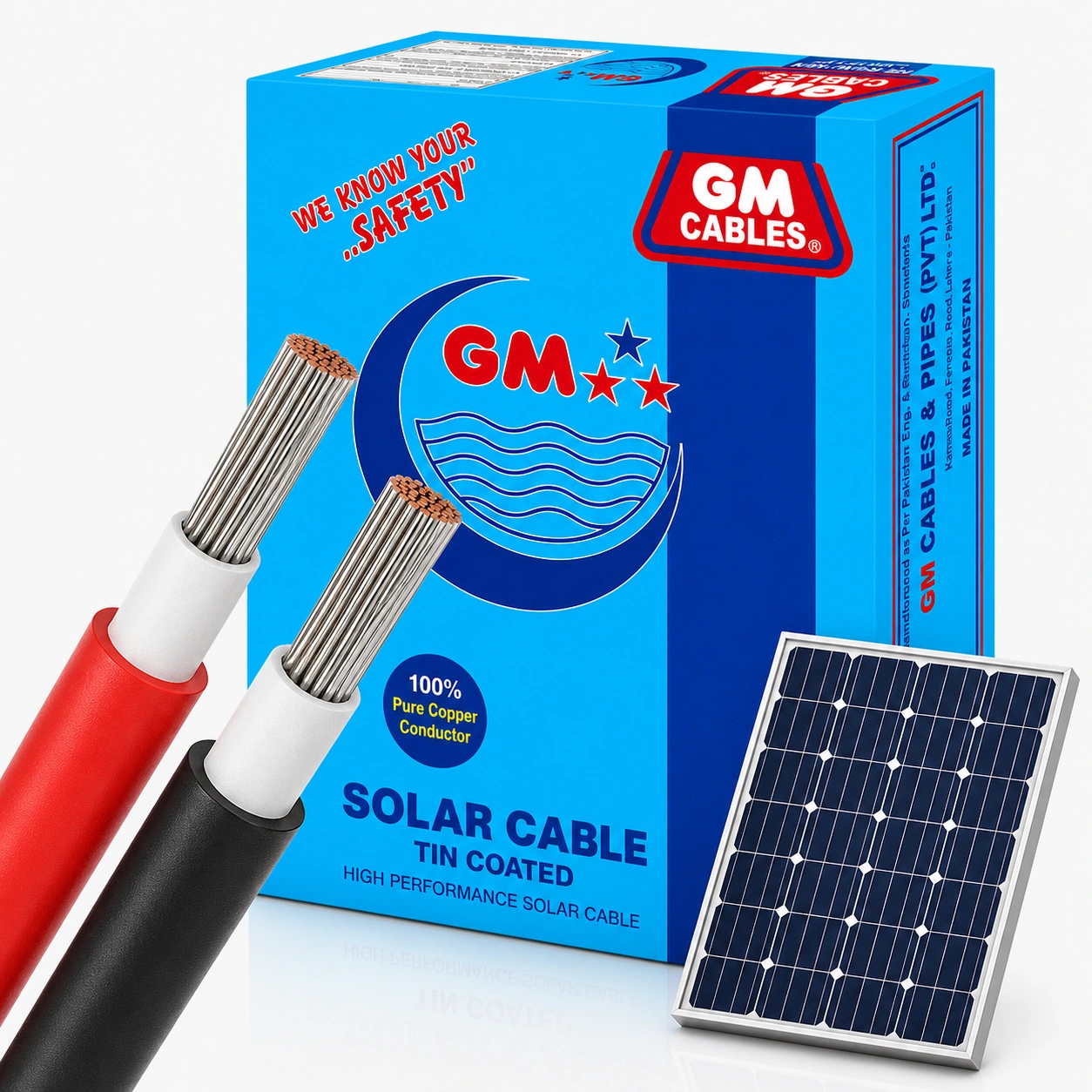

GM 10mm² Solar Cable

GM 10mm² Solar Cable is a flexible, one-core, DC-Harness designed for PV applications with a higher conductor size. It can be used between solar arrays, combiner equipment, and inverters when a smaller cable cannot be used due to the route length or system current.

GM solar cables are marketed as Cu/PVC/PVC products rated at 600/1000V and supplied in standard coils. The size of cables is not a function of the solar-system capacity, but must be determined using a DC voltage drop calculation.

Key Specifications & Features:

• Conductor Size: 10mm²

• Cable Type: Single-core flexible solar cable

• Conductor Material: Copper

• Voltage Rating: 600/1000V

• Insulation and Sheath: PVC/PVC

• Typical Coil Length: 90 metres

• Application: Photovoltaic DC connections

• Sizing Requirement: Based on current and route length
